Overview
FocMec is a core library that includes several tools. Each of this tools can be run from the CLI or yo can call them from your python script.
- Automatic first motion polarity determination
- Focal mecanism estimation
- Plotting tools
References:
Chakraborty, M., Cartaya, C. Q., Li, W., Faber, J., Rümpker, G., Stoecker, H., & Srivastava, N. (2022).
PolarCAP–A deep learning approach for first motion polarity classification of earthquake waveforms.
Artificial Intelligence in Geosciences, 3, 46-52.
Snoke, J. A. (2003). “FOCMEC: Focal Mechanism Determinations.”
International Handbook of Earthquake and Engineering Seismology, Part B, Academic Press, pp. 1629–1630.
https://seiscode.iris.washington.edu/projects/focmec
FOCMEC from CLI
- Automatic P-wave first motion polarity determination. The inputs are the project and the picking file in nonlinloc pick format (i.e., might be generated using command pick). Output is an edited pick file with polarities.
- FOCal MEChanism determinations (FOCMEC) software for determining and displaying double-couple earthquake focal mechanisms using the polarity and amplitude ratios of P and S waves.
- Plot fault planes, T & P axis, and P-wave polarities.
Usage
surfquake polarity
# Determines Polarities from P-wave first motion
Key Arguments:
-p, --project_file_path [REQUIRED] Path to a surfquake project
-f, --picking_file_path [REQUIRED] Path to a picking files
-o, --output_file_path [REQUIRED] Path to the new picking file edited with polarities
-t, --thresh [OPTIONAL] Threshold for Polarity declaration
Example usage:
> surfquake polarity -f ./nll_picks.txt -p ./project_file.pkl -o ./nll_picks_polarities.txt -t 0.95
output file "nll_picks_polarities.txt"
Station_name Instrument Component P_phase_onset P_phase_descriptor First_Motion Date Hour_min Seconds Err ErrMag Coda_duration Amplitude Period
EADA ? HHZ ? P U 20150917 1512 31.9770 GAU 7.00e-02 -1.0 6.23e+07 -1.0
ETOB ? HHZ ? P U 20150917 1513 00.3900 GAU 2.00e-02 -1.0 1.64e+08 -1.0
ETOB ? HHZ ? S ? 20150917 1513 56.3200 GAU 5.00e-01 -1.0 8.22e+07 -1.0
CEU ? HHZ ? P U 20150917 1512 08.3600 GAU 2.00e-02 -1.0 1.82e+08 -1.0
surfquake focmec
# Focal Mechanism from P-Wave first motion polarity
Key Arguments:
-d, --hyp_folder [REQUIRED] Path to folder containing hyp files
-o, --output_folder [REQUIRED] Path to the output folder
-a, --accepted [OPTIONAL] Number of accepted wrong polarities (float, default 1.0)
Example usage:
> surfquake focmec -h # Interactive help
> surfquake focmec -d ./folder_hyp_path -a 1.0 -o ./output_folder
surfquake plotmec
# Plot fault planes, T & P axis, and P-wave polarities
Key Arguments:
-f, --focmec_file [OPTIONAL] Path to a specific *.lst file
-d, --focmec_folder_path [OPTIONAL] Path to folder with all *.lst files (focmec output)
-o, --output_folder [REQUIRED] Path to the output folder
-a, --all_solutions [OPTIONAL] If set, all searching fault planes will be plot
-p, --plot_polarities [OPTIONAL] If plot P-Wave polarities on the beachball
-m, --format [OPTIONAL] Format output plot (defaults pdf)
Example usage:
> surfquake plotmec -h # Interactive help
> surfquake plotmec -d ./focmec_folder_path -o ./output_folder
> surfquake plotmec -f ./focmec_file_path.lst -o ./output_folder -p -a -m pdf

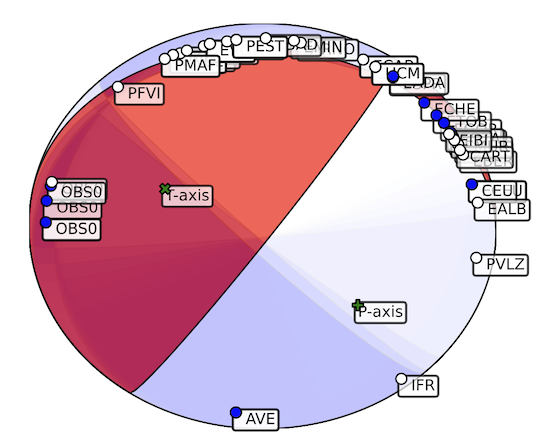

Output plot example
Focmec from library
Classes & Methods
In this section, we will explain the class RunPolarity and we will explain how to manage your project from a simple example:
class RunPolarity:
def __init__(self, project, pick_file:str, output_path:str, threshold=0.9):
"""
Attributes:
- project (SurfProject): SurfProject object
- pick_file (str): path to picking file
- output_path (str): path to output_path
Methods
- send_polarities(self): Run automatic determination
"""
class FirstPolarity:
def __init__(self):
"""
Manage FOCMEC files for run nll program.
Important: The obs_file_path is provide by the class :class:`PickerManager`.
Methods:
find_hyp_files:
return list of hyp_files
set_head(hyp_file_path): staticmethod, helps to set a string in comments of focmec input, check that input file is valid.
return header
create_input(self, hyp_file_path, header): creates the focmec input from a hyp_file. return path to the input file
check_no_empty(input_file): staticmethod, check that the input file has been created correctly.
run_focmec(self, input_focmec_path, num_wrong_polatities, new_output_path=None): Run focal mechanism estimation and write the
output in folder new_output_path
"""
class FirstPolarity:
def __init__(self):
"""
Manage FOCMEC files for run nll program.
Important: The obs_file_path is provide by the class :class:`PickerManager`.
Methods:
find_hyp_files:
return list of hyp_files
set_head(hyp_file_path): staticmethod, helps to set a string in comments of focmec input, check that input file is valid.
return header
create_input(self, hyp_file_path, header): creates the focmec input from a hyp_file. return path to the input file
check_no_empty(input_file): staticmethod, check that the input file has been created correctly.
run_focmec(self, input_focmec_path, num_wrong_polatities, new_output_path=None): Run focal mechanism estimation and write the
output in folder new_output_path
"""
Examples Scripts
Next, the example of using this class and its methods.
